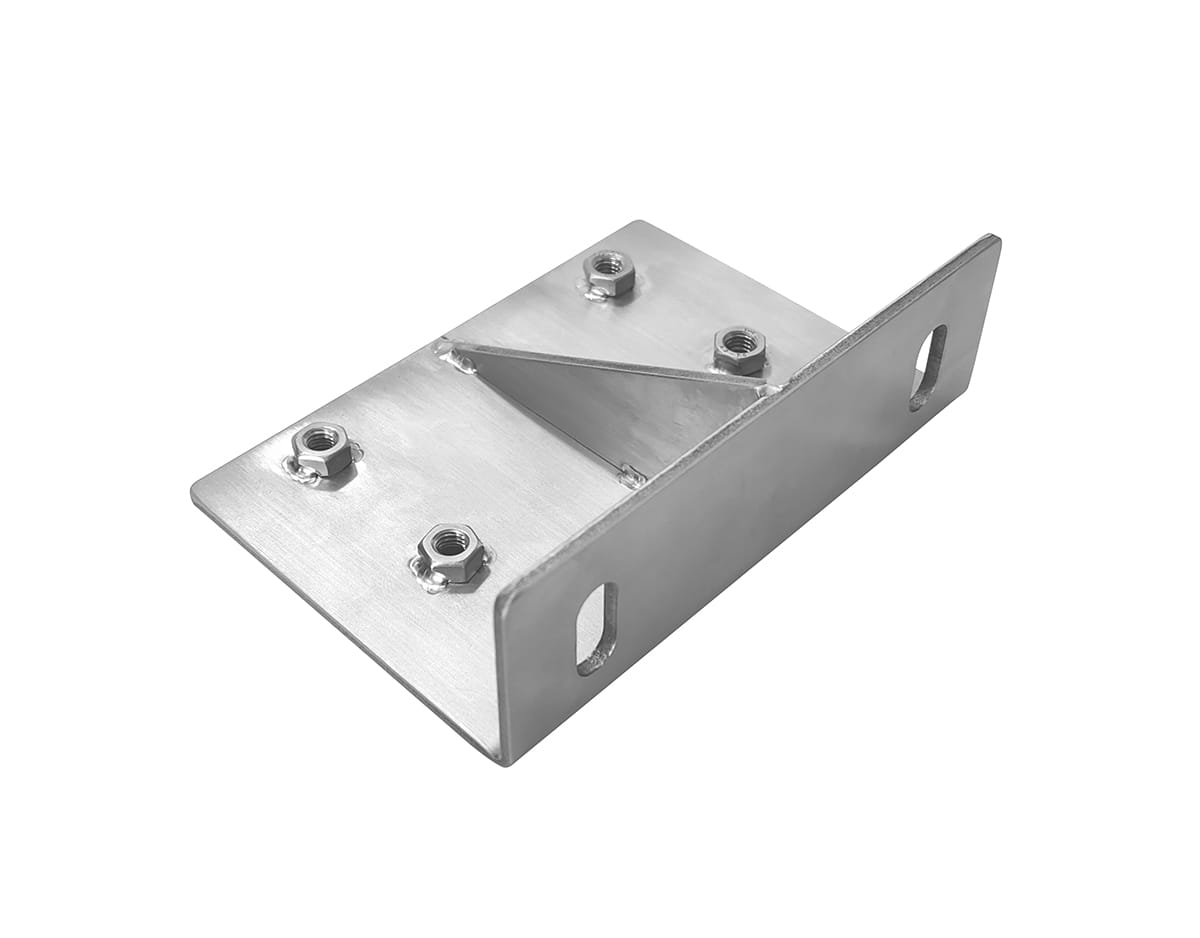

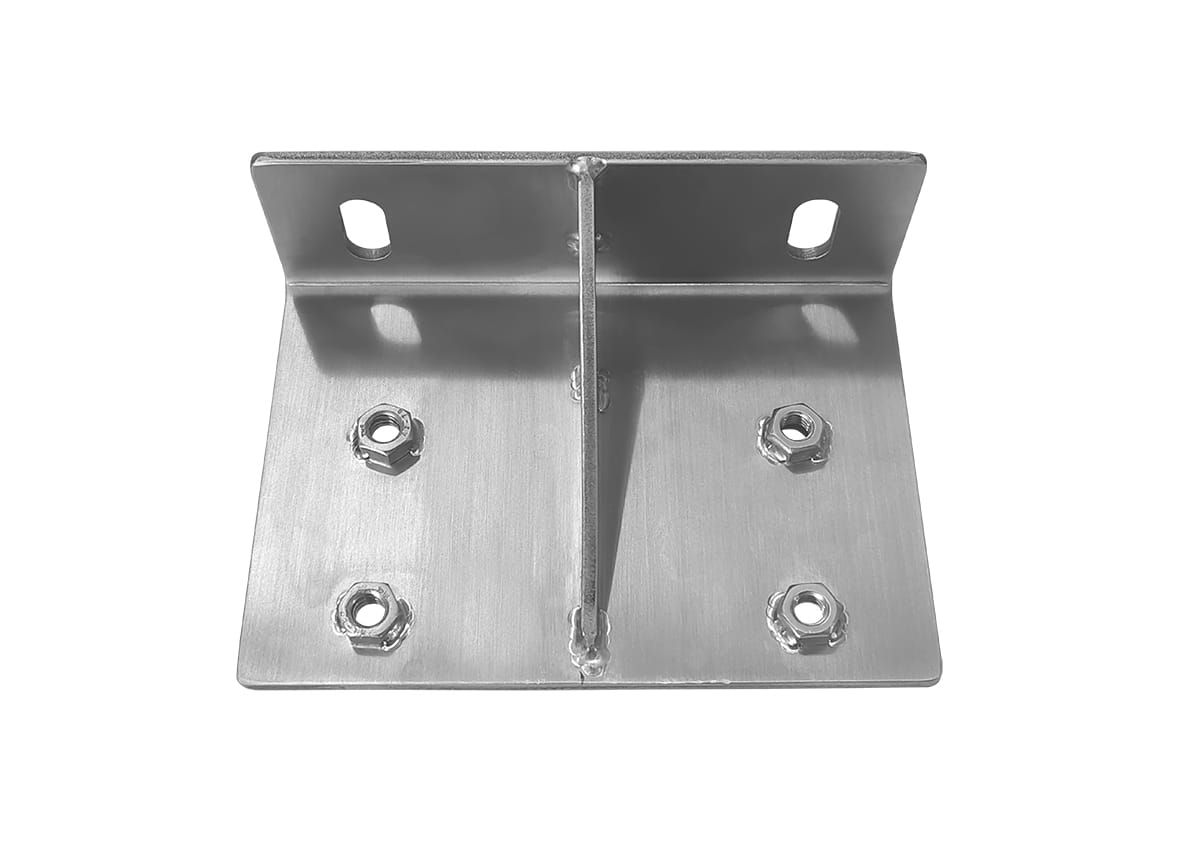

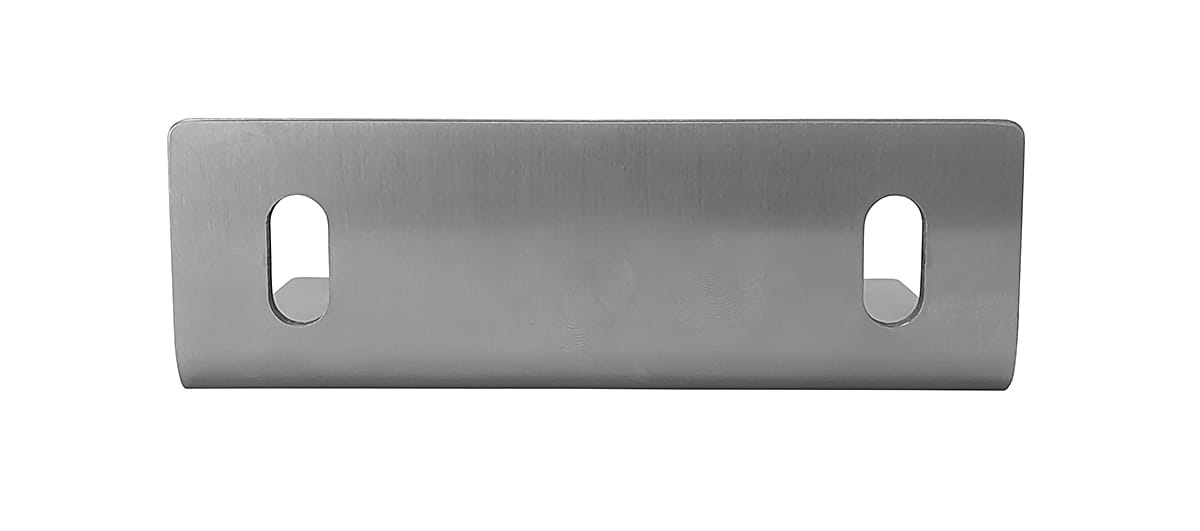

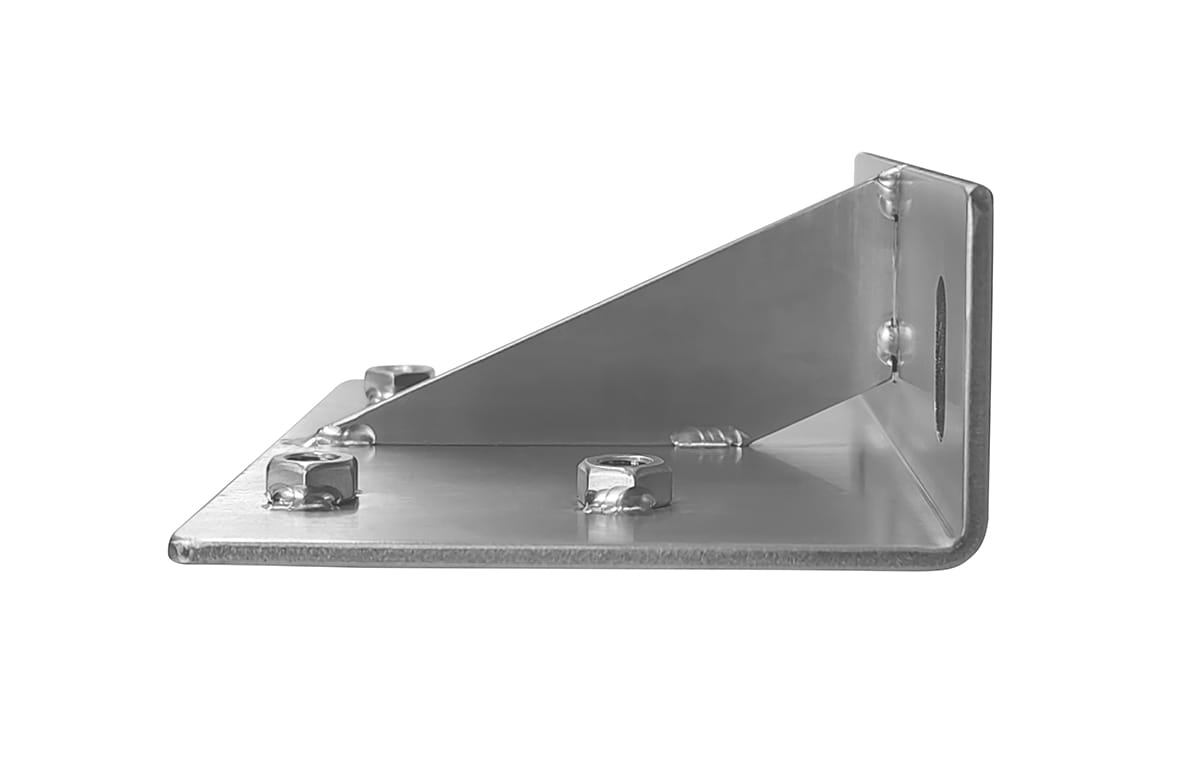

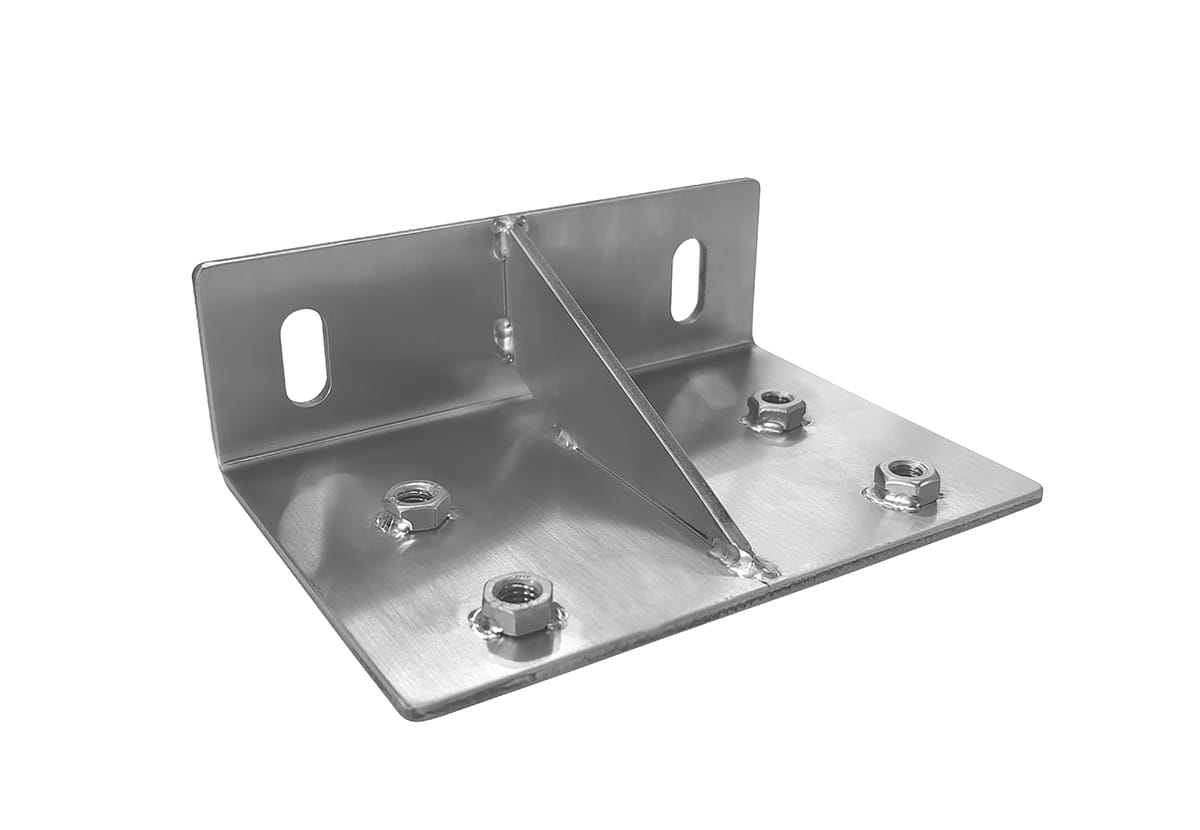

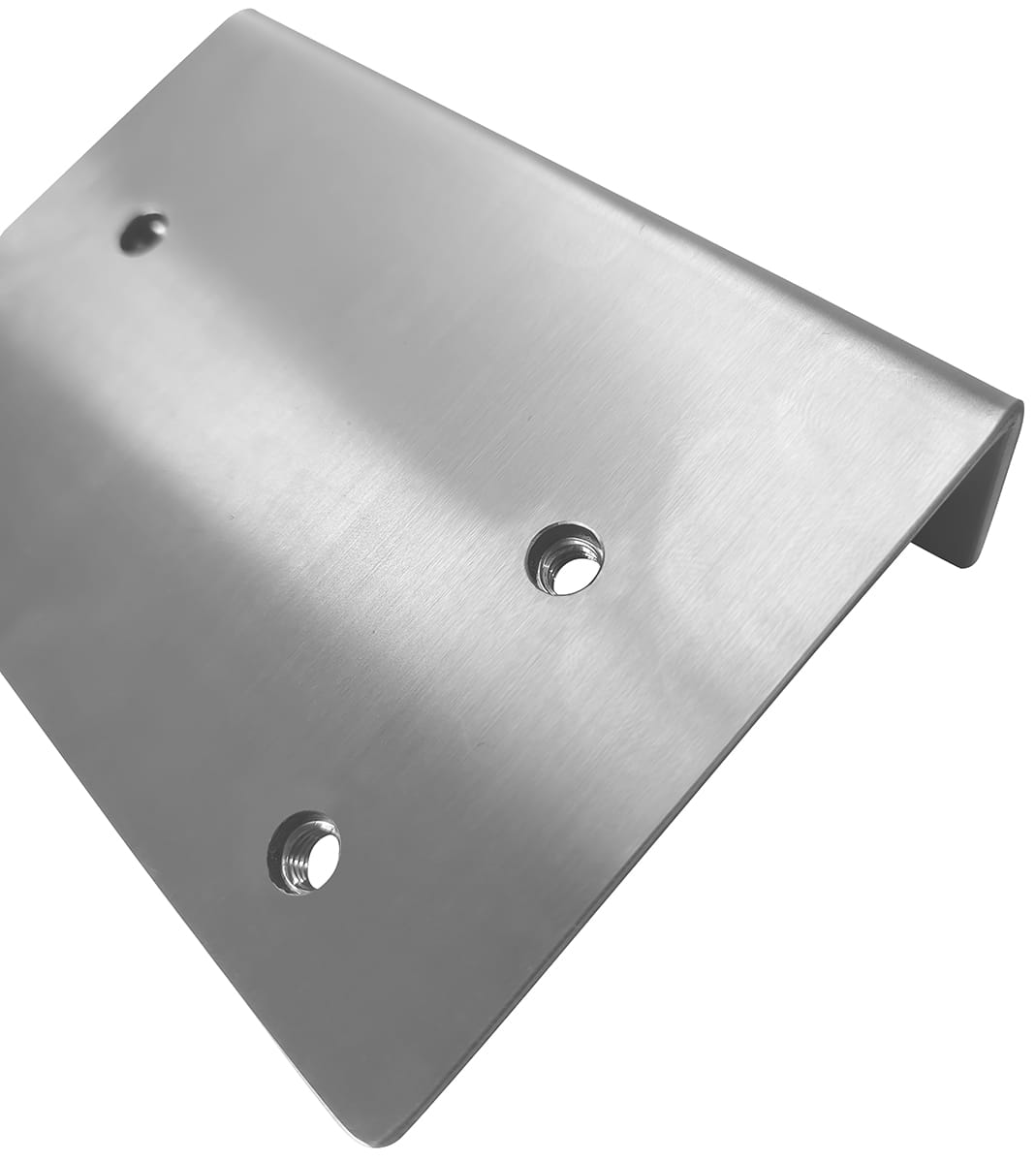

The Reel Outer Box Top Flap Opener is a door locking and opening mechanism specially designed for machine doors and top covers. Its refined L-shaped design, precision screw holes, and punched mounting points provide secure and stable installation, allowing the door or cover to be firmly held in position. With its precise structural design and durable construction, it is suitable for a wide range of applications, including cleanrooms, industrial production environments, machinery, and sheet metal fabrication.

Features:

• Rigid Support Design: The bracket features a reinforced vertical rib welded along its centerline, enhancing structural strength to withstand dynamic motion.
• Multi-Point Mounting Holes: Strategically placed round and slotted mounting holes at both ends ensure stable, adjustable installation.
• Flat Mounting Base: The elongated base aligns flush to gantry surfaces, maintaining cable alignment and reducing vibration.
• Welded End Plate: One end includes a welded vertical plate that anchors the bracket and defines a physical cable stop.
• Smooth Brushed Finish: Deburred edges and a clean surface finish promote safe handling and a professional appearance.

Material:

• Stainless Steel: Delivers robust mechanical support with excellent resistance to corrosion and vibration. Its hygienic and low-maintenance surface makes it suitable for both cleanroom and industrial machine environments.

Dimensions:

• Height: Customizable
• Length: Customizable
• Base Width: Customizable
• Hole Configuration: Round and slotted holes available for flexible mounting
• Support Rib: Integrated for structural reinforcement
• Depth: Integrated for structural reinforcement
• Stop Tab Thickness: Integrated for structural reinforcement
• Mounting Slot Size: Integrated for structural reinforcement

Applications:

Commonly used to hold and guide drag chains or cable carriers in automation gantries, CNC systems, and robotic platforms. It maintains organized cable routing along moving arms or axes, ensuring protection and reliability of energy supply  systems during repetitive operations.

Customization:

Available in various lengths, hole placements, material types (e.g., mild steel, aluminum), and finishes. Specific geometry or bracket reinforcements can be tailored to suit machine model and load requirements.
