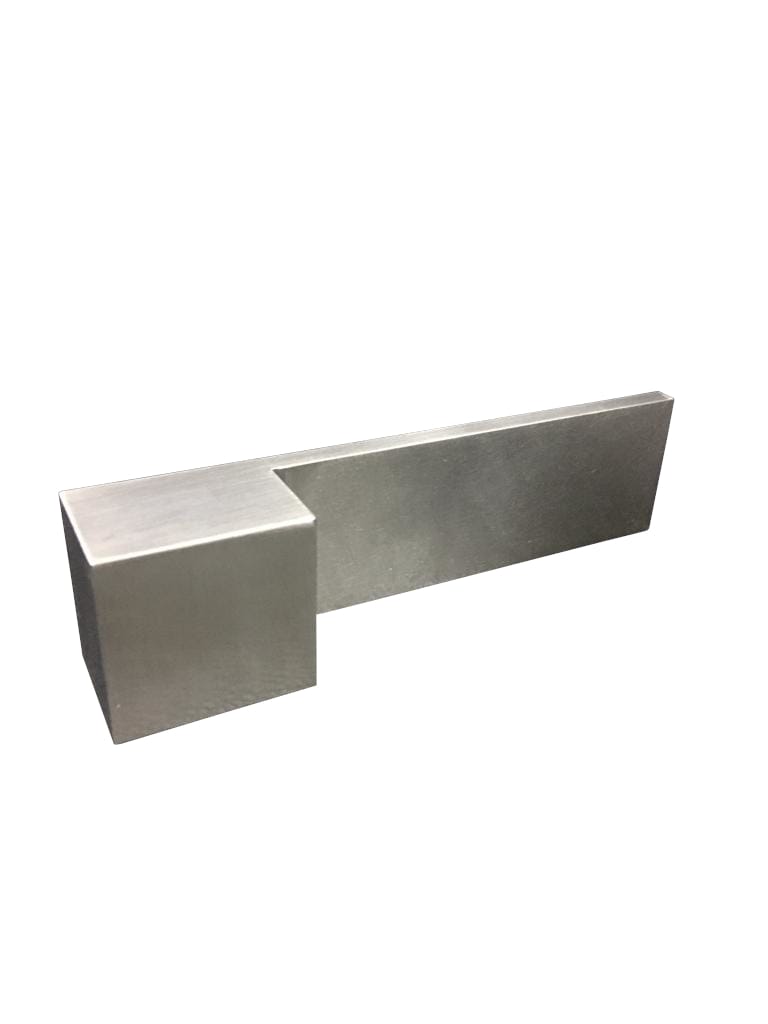

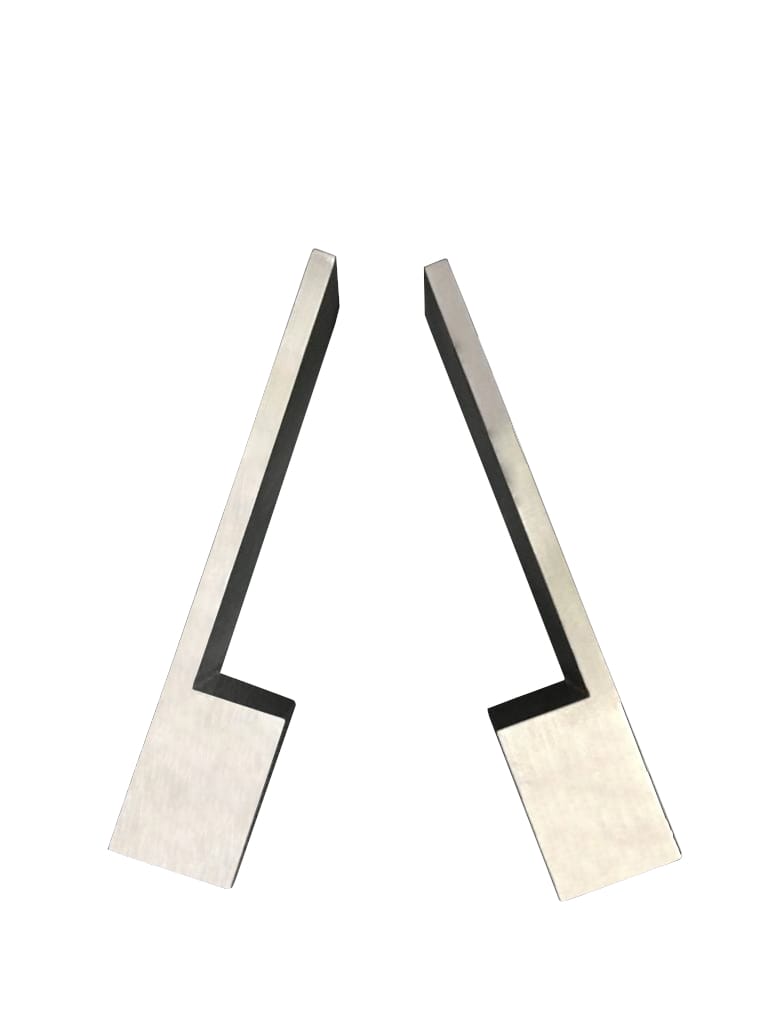

The L-Shape Block is a precision-machined positioning and support component designed to provide accurate right-angle alignment, spacing, and structural reference in assembly, inspection, and tooling environments. Its solid aluminum construction and clean L-shaped geometry ensure consistent performance, repeatable setup, and reliable support in precision industrial applications.

Features:

• Precision Geometry: Manufactured with a controlled 90º angle to ensure accurate squareness. This makes the block suitable as a reference component for alignment, inspection and positioning tasks.
• Solid Construction: Machined from a single aluminum block, providing high rigidity and resistance to deformation. This ensures the block maintains its shape and accuracy even under repeated use or moderate loading.
• Flat Surfaces: All functional surfaces are precisely machined to be flat and smooth, ensuring full and consistent contact with workpieces, fixtures, and measurement tools.
• Compact Design: The simple L-shaped profile allows easy integration into jigs, fixtures, and workstations without interfering with surrounding components, making it ideal for space-limited setups.
• Clean Edge and Surface Finish: Edges are neatly finished to improve handling safety and reduce the risk of damage to mating components, while maintaining a professional appearance.

Materials:

• Aluminum: Lightweight yet strong and corrosion-resistant, provides excellent dimensional stability and ease of handling.

Dimensions:

• Overall Length: Customizable
• Overall Width: Customizable
• Thickness: Customizable
• Angle Tolerance: Customizable
• Edge Treatment/ Chamfer Radius: Customizable

Applications:

Commonly used in jigs and fixtures, assembly stations, inspection setups, tooling alignment, calibration work, and precision manufacturing environments. The L-Shape Block serves as a reliable reference for squareness, positioning, and spacing, supporting consistent quality and repeatability across production and inspection processes.

Customization:

Customization options include overall dimensions, tolerance level, surface finishing, edge chamfer or radius, and material selection. While aluminum is standard, alternative materials such as mild steel or stainless steel can be selected based on load requirements, environmental conditions, or application-specific needs.
