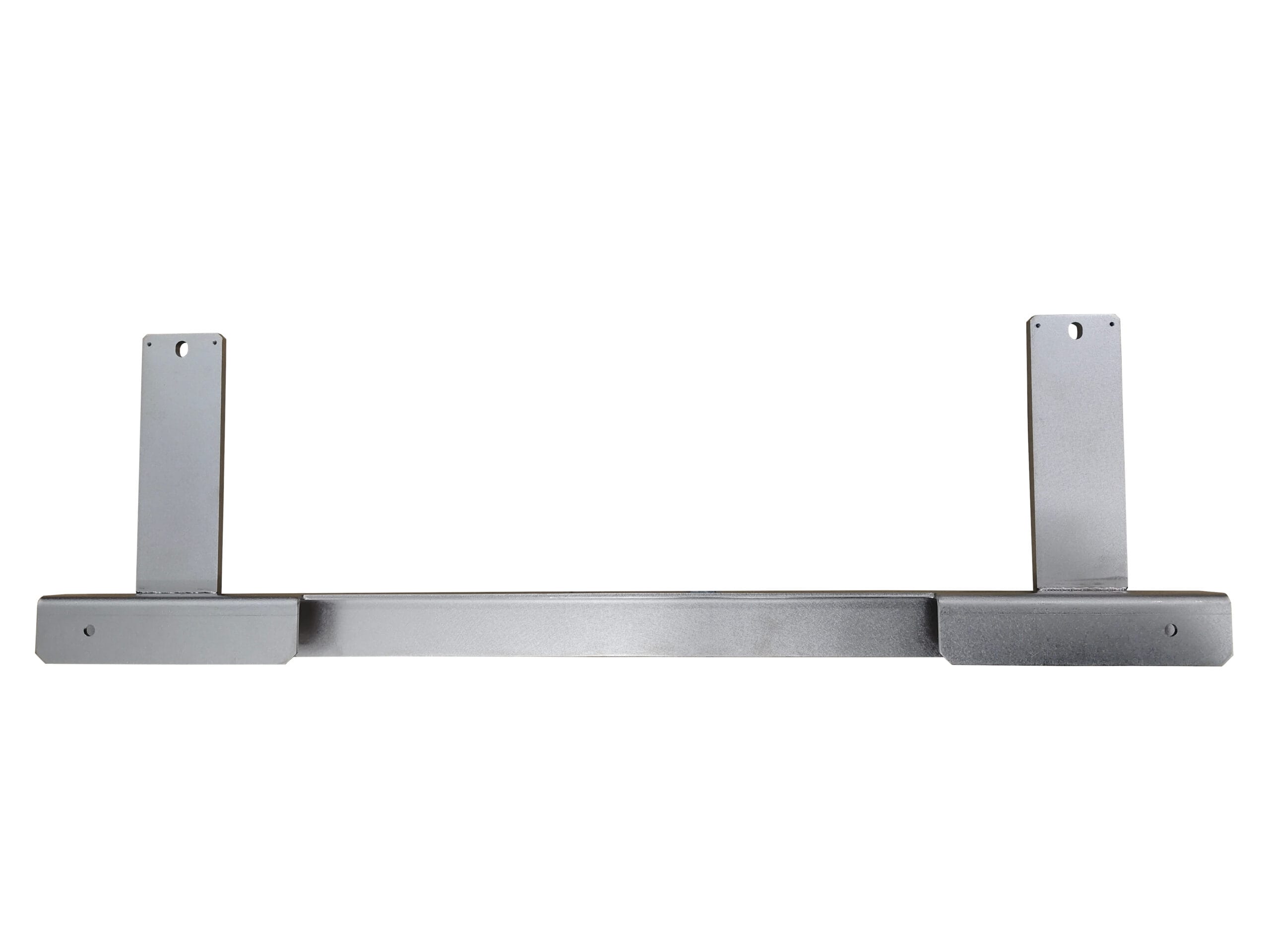

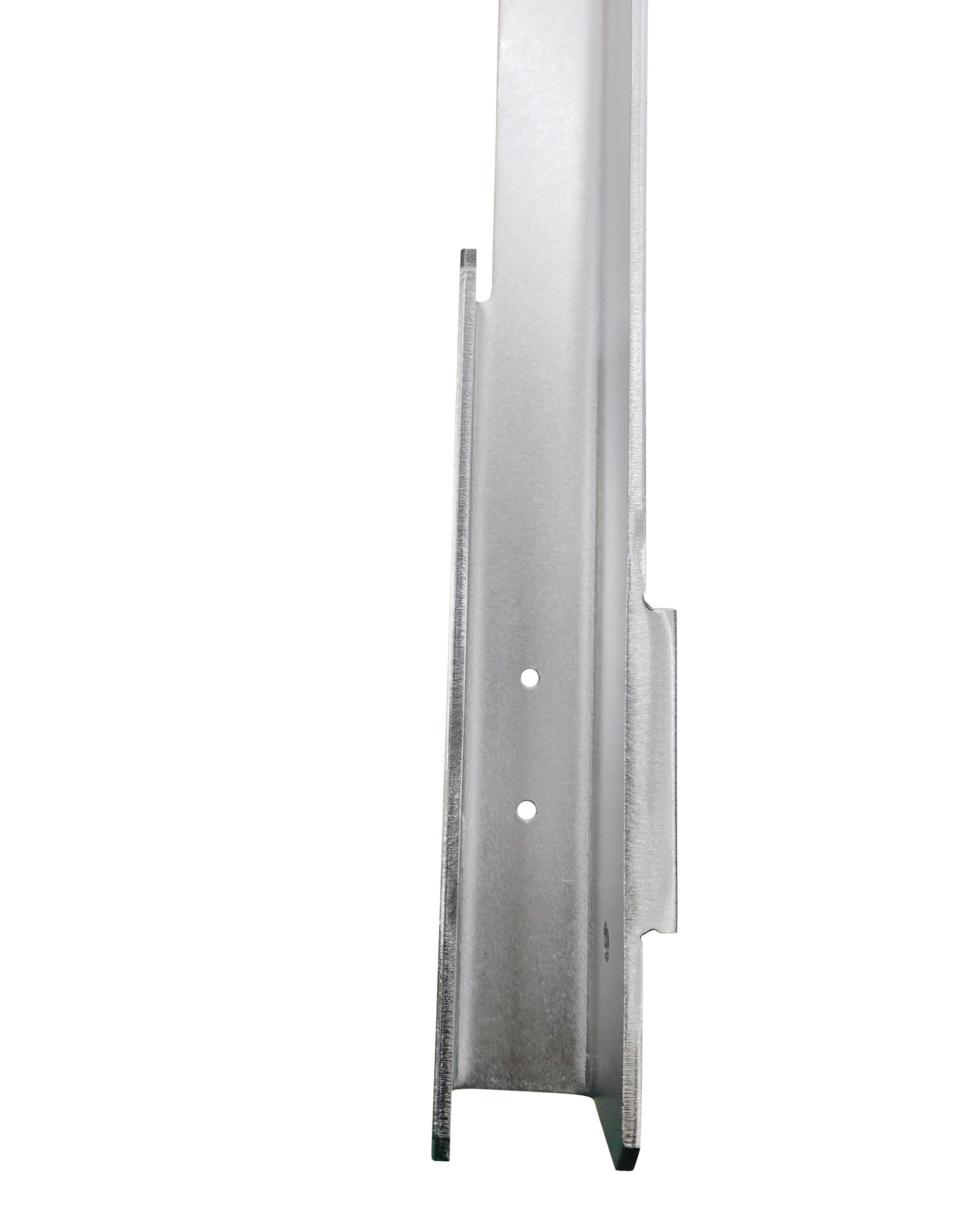

The Horizontal Support Frame is a robust, precision-fabricated structural component designed to provide stability and reinforcement for industrial machinery and equipment setups. The frame features a rectangular horizontal beam with welded vertical mounting plates and reinforced end sections, ensuring balanced load distribution and secure installation.

Features:

• Heavy-Duty Construction: Manufactured from high-strength stainless steel to deliver superior rigidity, durability, and long service life under demanding operational conditions.
• Reinforced Structure: Fully welded joints between the horizontal beam and vertical mounting plates enhance structural integrity and reduce deflection under load.

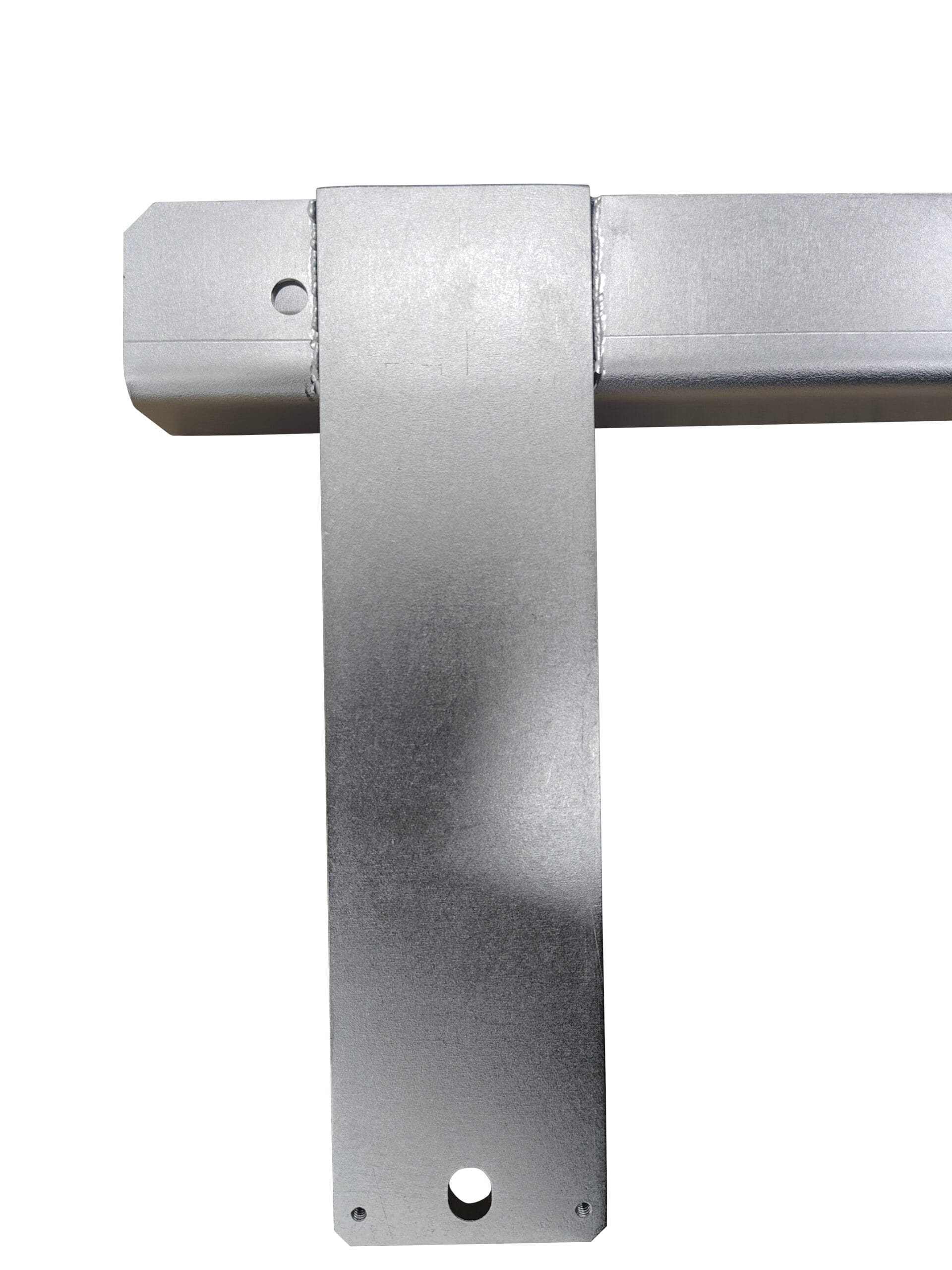

• Dual Vertical Mounting Plates: Equipped with upright brackets featuring precision-cut mounting holes for secure attachment to machinery, frames, or structural assemblies.
• Stabilized End Support Section: Thickened end portions provide additional reinforcement and improved load transfer across the beam.
• Pre-Drilled Mounting Points: Designed for straightforward installation and alignment with various industrial equipment configurations.
• Corrosion-Resistant Finish: Stainless steel surface provides natural resistance to rust and environmental exposure, ensuring long-term performance.

Material:

• Stainless Steel: Engineered using industrial-grade stainless steel to ensure excellent load-bearing capability, corrosion resistance, and durability in harsh or semi-controlled environments.

Dimensions:

• Length: Customizable
• Width: Customizable
• Thickness: Customizable
• Mounting Plate: Customizable
• Load Capacity: Customizable

Applications:

The Horizontal Support Frame is ideal for integration into industrial machinery, automation systems, and workstation structures. It serves as a reinforcement beam for machine assemblies, conveyor supports, structural frameworks, and equipment mounting bases. Its rigid construction ensures reliable performance in high-load and high-vibration environments.

Customization:

We provide tailored solutions to meet specific industrial requirements, including adjustable dimensions, custom mounting hole configurations, reinforced structural enhancements, and specialized surface finishes. With options for increased load capacity and enhanced structural reinforcement, it delivers long-term stability and reliability in demanding applications.
