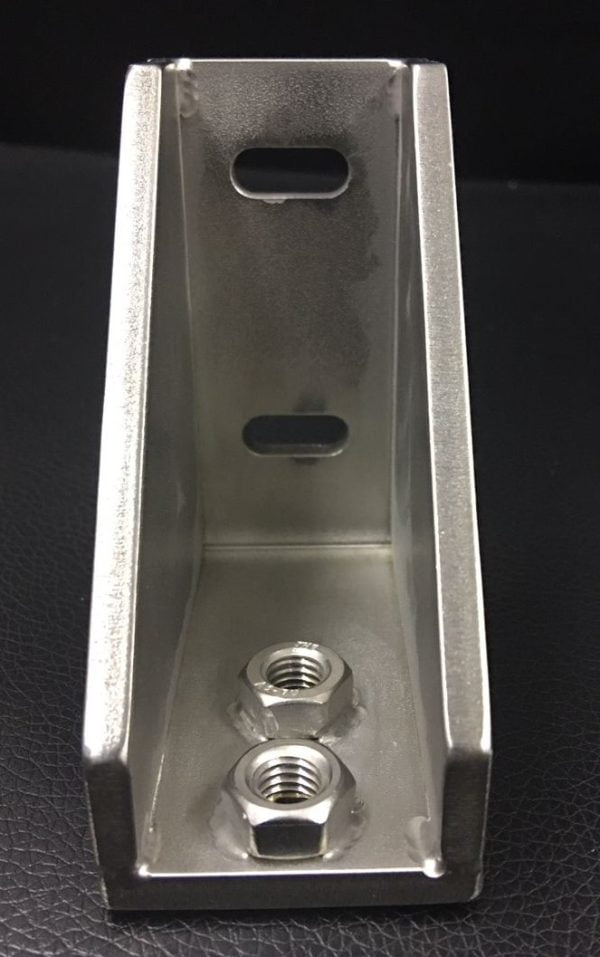

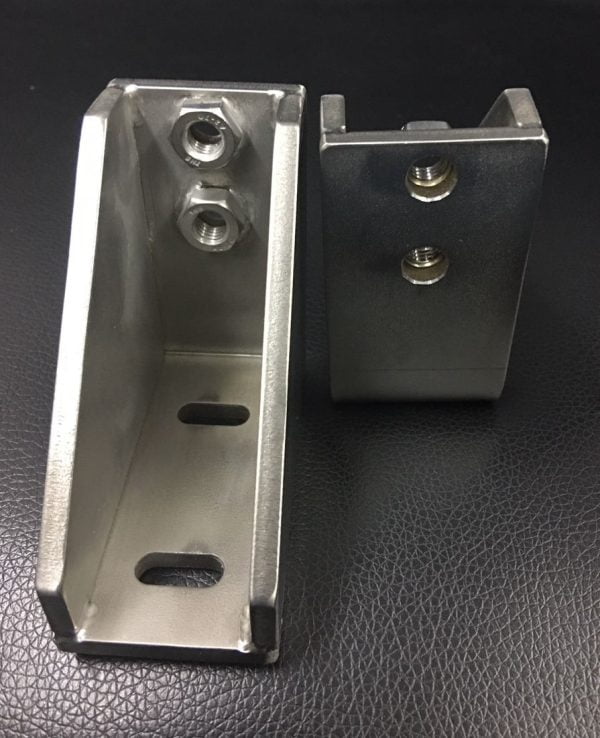

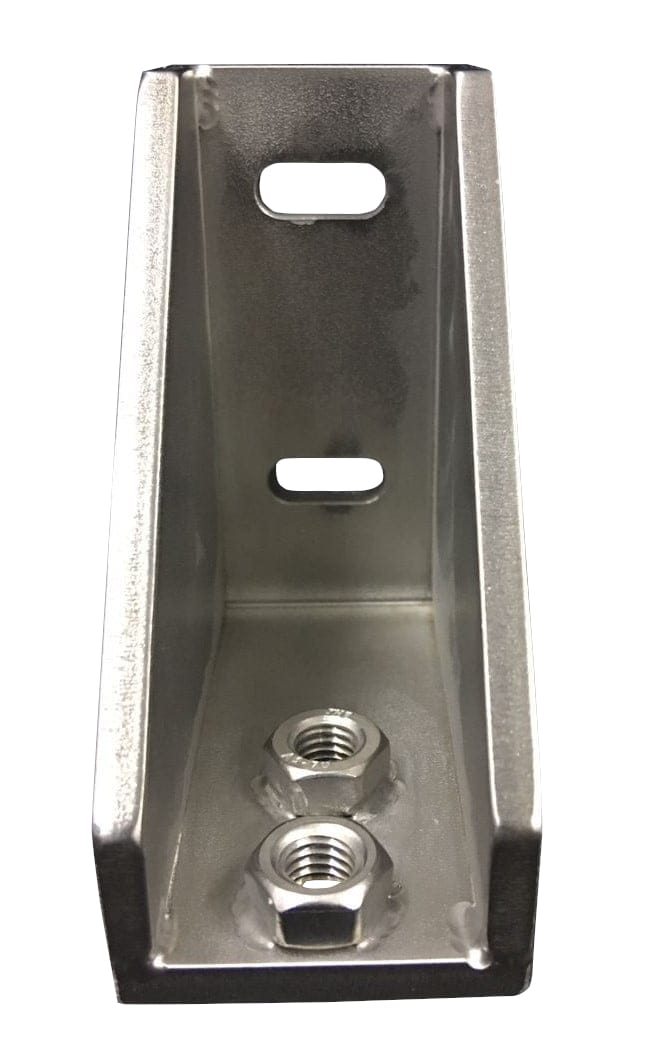

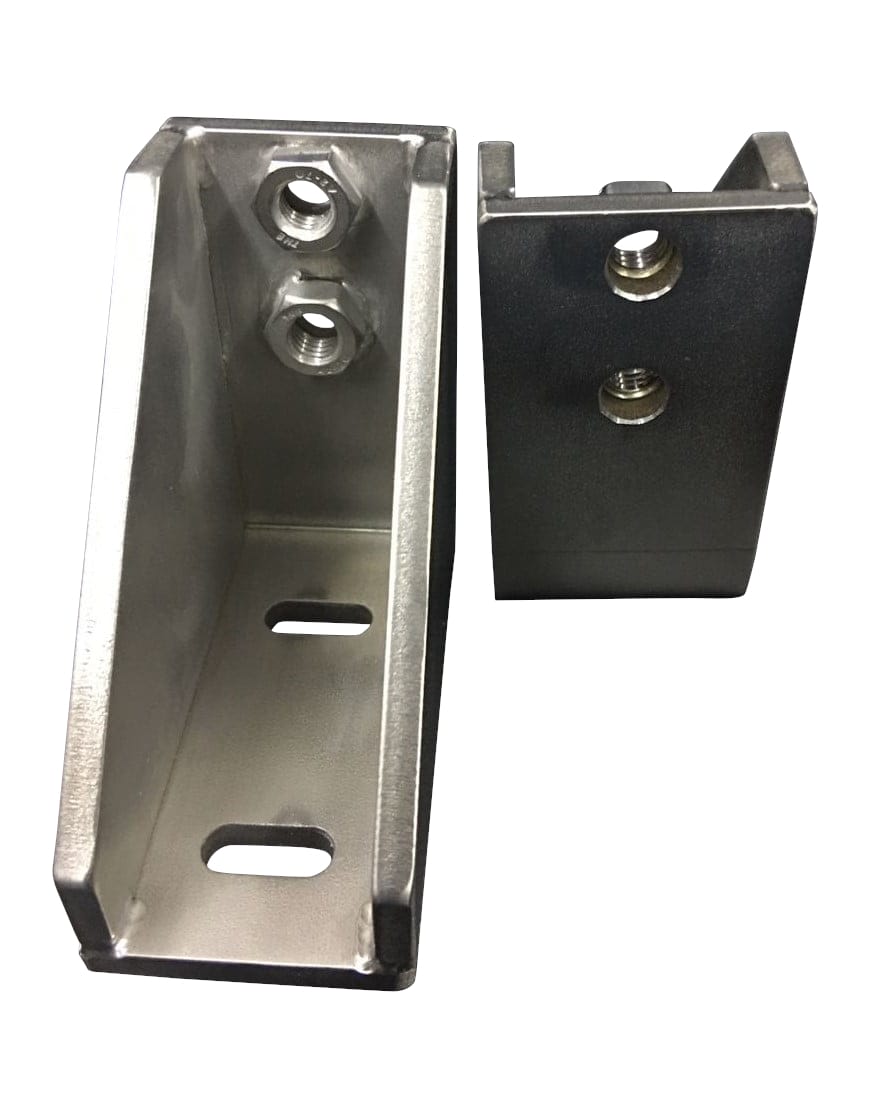

The Hard Stop Bracket is a precision-fabricated metal component designed to act as a fixed mechanical stopping point in industrial, automation, and machinery applications. Manufactured with a rigid U-shaped structure and reinforced threaded mounting points, this bracket provides reliable positional control, impact resistance, and long-term durability. Its slotted base design allows for easy alignment and adjustment during installation, making it suitable for various machine frames and linear motion systems.

Features:

• Rigid Hard Stop Structure: Designed to provide a solid stopping point for mechanical movement, ensuring consistent positioning and operational safety.
• Threaded Mounting Points: Integrated welded nuts allow secure bolt fastening, offering strong load-bearing capability and resistance to loosening during operation.
• Slotted Base Design: Elongated mounting slots enable flexible positioning , fine adjustment, and ease of installation on machine frames or base plates.
• Heavy-Duty Fabrication: Constructed from thick metal plate with reinforced edges for enhanced strength and impact resistance.
• Compact and Functional Design: Optimized size allows integration into tight spaces without compromising performance.

Materials:

• Mild Steel/ Stainless Steel: Stainless steel option offers excellent corrosion resistance for harsh or cleanroom environments, while mild steel is suitable for general industrial applications.

Dimensions:

• Depth: Customizable
• Width: Customizable
• Height: Customizable
• Slot & Thread Size: Customizable based on application requirements.

Applications:

Suitable for use in industrial machinery, automation systems, conveyor lines, jigs and fixtures, machine frames, and positioning assemblies. The Hard Stop Bracket is commonly used to control end positions, limit travel movement, and provide repeatable mechanical stops.

Customization:

Customization options include material selection, thickness, slot length and width, thread size and position, overall dimensions, and surface finishing. Deign modifications can be made to suit specific load requirements or installation constraints.
